Stone sink CNC KT12
Stone sink CNC KT12 is cutting machine for granite marble and quartz.it is a excellent stone Kitchen Top CNC.The Stone sink CNC KT12 is a revolutionary machine to cut granite countertops, modern and simple to use thanks to AitalMAC experience in making CNC machines for granite for more than 30 years, the KT12 it’s the best CNC machine on the market to cut sink cut out.
The open design makes it easy to load and unload your countertops on the machine (optional 2 tables to double production), parts can be quickly lined up on alignment blocks, and immediately fixed with pneumatic locking pistons.
The user-friendly UI lets you choose between your loaded sink cut outs, after finding the center with the laser pointer, all the operator has to do it start and watch it cut!
3 interpolated axis.

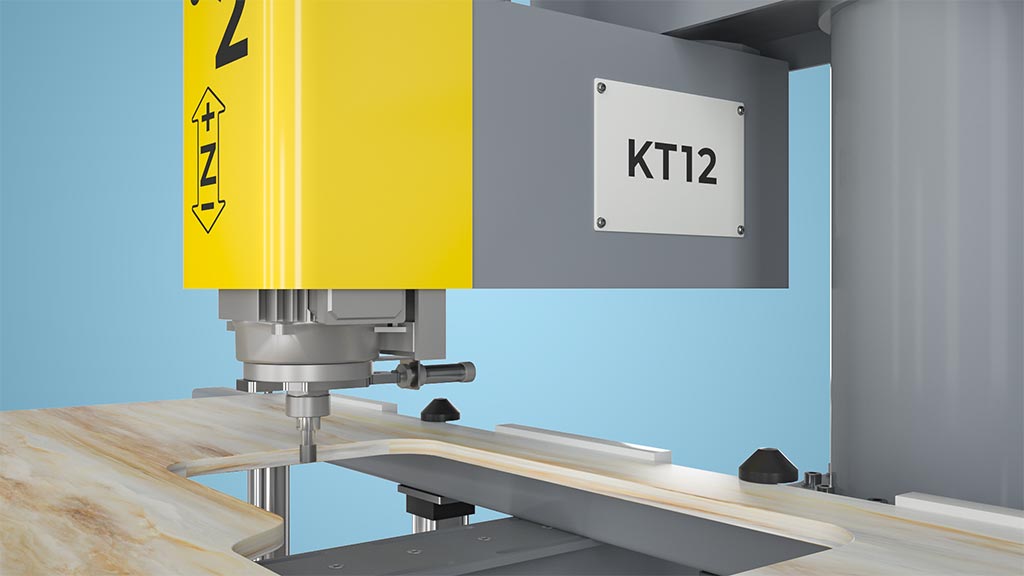

Stone sink CNC KT12 Rapid Machining of Flume by 3 interpolated axis .

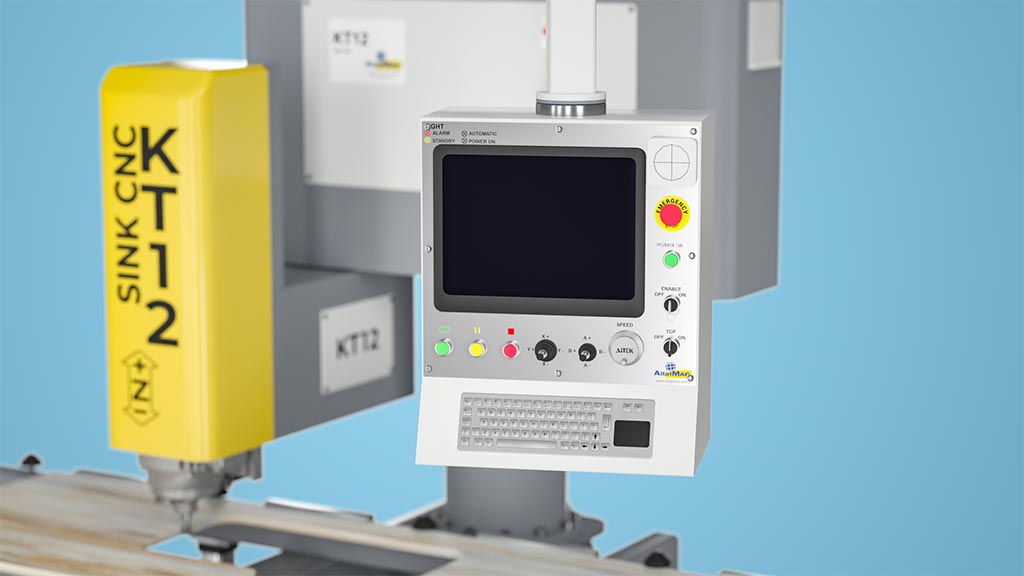

Stone sink CNC controller
User-friendly user interface allows you to choose between loaded slots in the flume,the operator simply starts and watches the slot!
Marble and quartzite flume cutting
Sink CNC KT12 can process quartzite and marble Kitchen Top tables quickly and efficiently..

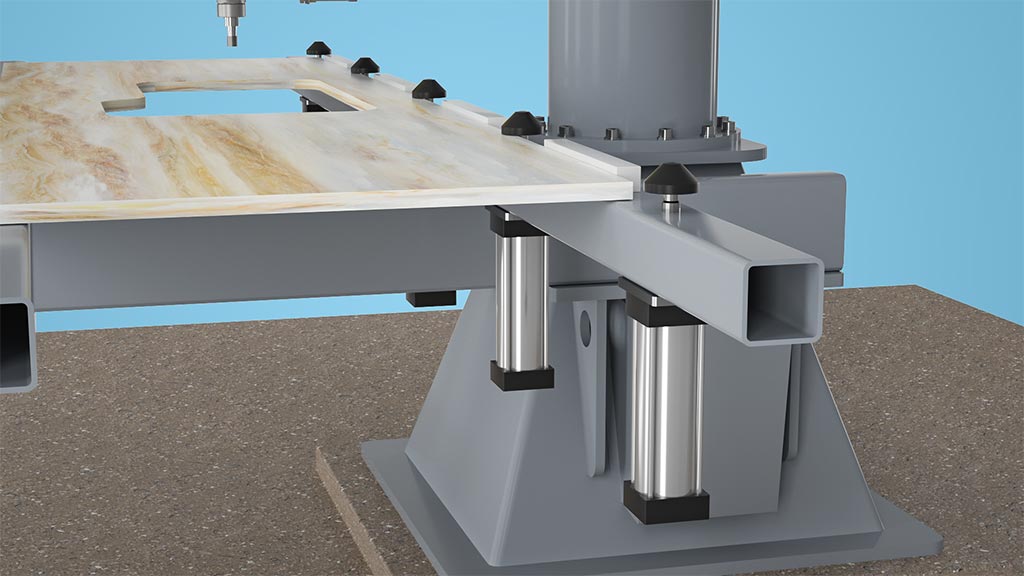

Alignment blocks & locking pistons.
Parts can be quickly lined up on alignment blocks, and immediately fixed with pneumatic locking pistons.

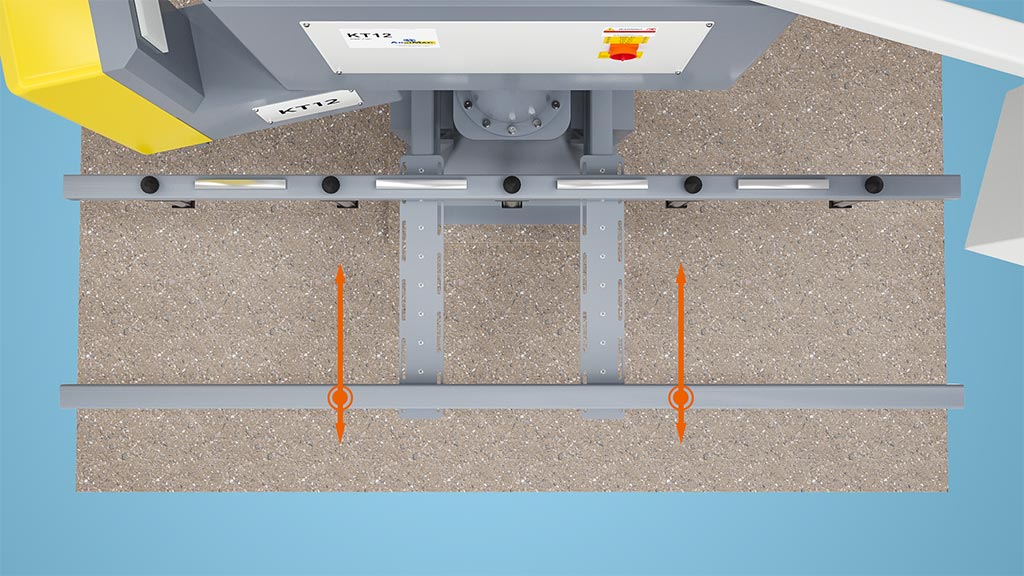

SINK CNC KT 12 Adjusting bracket
The stone sink CNC bracket can be adjusted according to the width of granite marble and quart

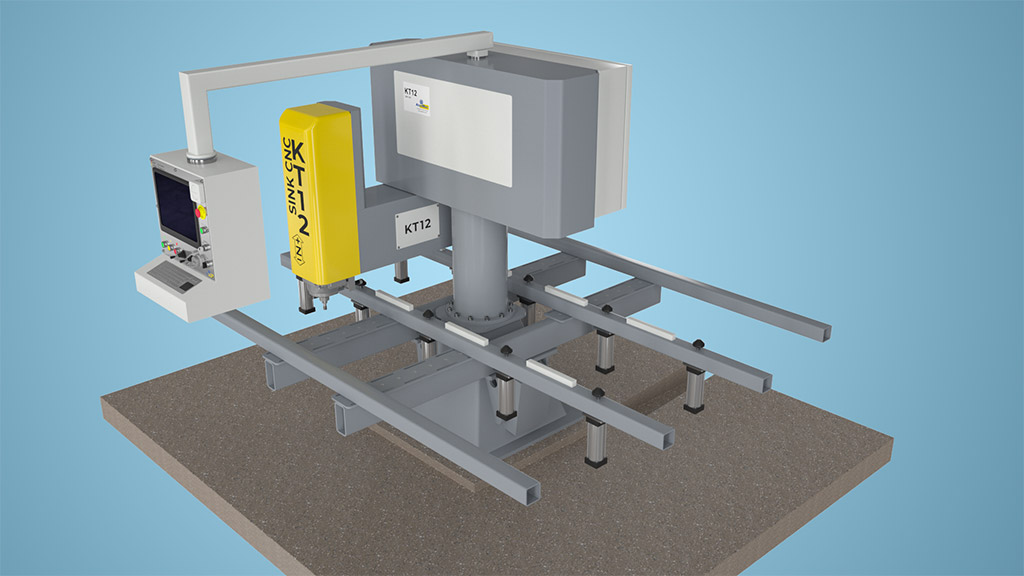

Stone sink double table
The stone sink CNC double table can greatly improve the efficiency of stone processing.
Stone sink cnc KT12 technical date
| Max.Tools Diameter | 50 mm / 1.97 in |
|---|---|
| Electric spindle power | 7.5 kW |
| Variable cutting and return speed | 0 - 30 m/min / 0 - 98.4 ft/min |
| Total weight | 1500 Kg/3307 lbs |
| Water consumption | 20-50 l/min / 5-13 gal/min |
| Max. Install power | 11 kW |
