Edge Polisher Robot EPR 3500
Edge shaper and polisher for flat and convex edges of marble, granite and synthetic stones.This machine can carry out all the operations needed for the shaping and polishing of flat and rounded edges.
The EPR 3500 is a fine combination of mechanical, electrical and software engeneering.
It can shape and polish convex edges on the stone using flat polishing tools, the machine has the fastet patented automatic tool change in the market.
It has a patented motor that can retract and extend his shaft pneumatically, and uses different pressures to adjust the work load of tools on the stone.
It can be programmed in any angle and position on your edge to achieve incredible quality results.
DEKTON miter
DEKTON miter optional for machine stone Edge Polisher Robot EPR3500.DEKTON miter with blade for Granite, Marble or quartz, grind wheel for miter DEKTON material.view video

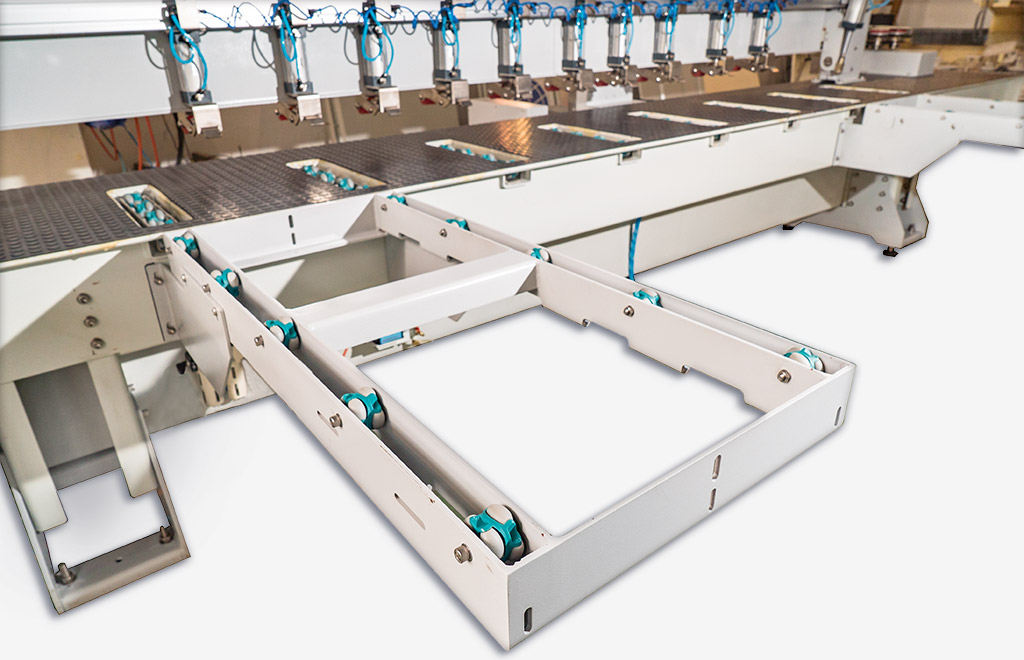

Holder
The size of the supplementary holder is 600mm x 1100mm.This holder supports longer stone pieces preventing them to brake or crack.
Tool presetting system
The machine is supplied with a tool presetting system that can measure the thickness of the grinding tool automatically.The machine has an optical probe, mounted on the head, that is used to automatically recognize the position of the stone on the bench.

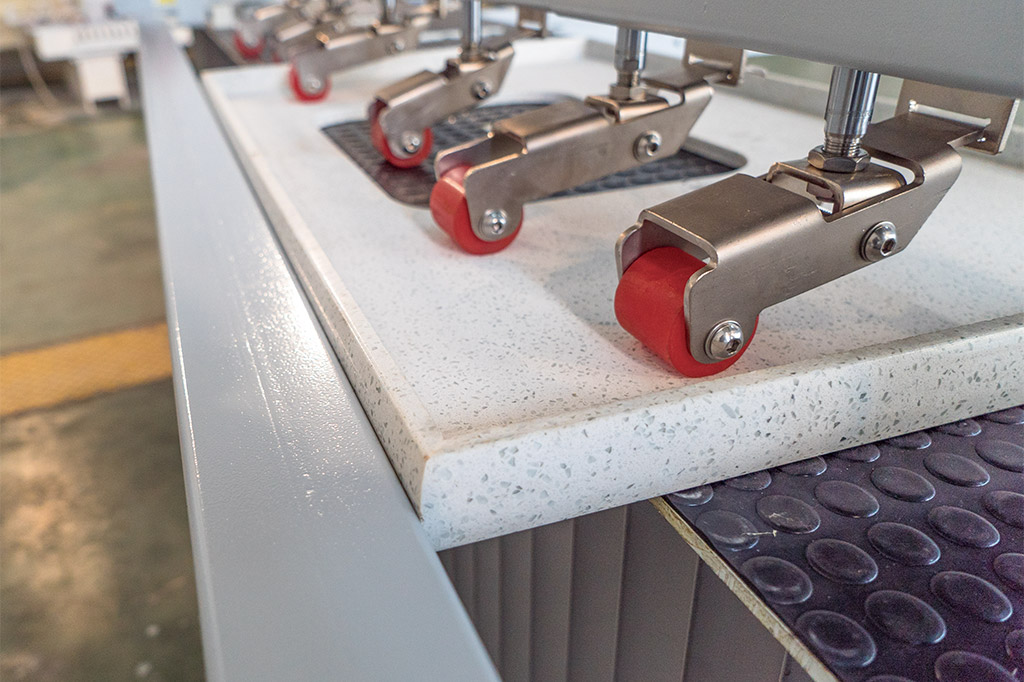

Alignment stoppers
One long stopper is mounted onthe bridge.This stopper allow theoperator align the stone to allowprecise edge shaping.

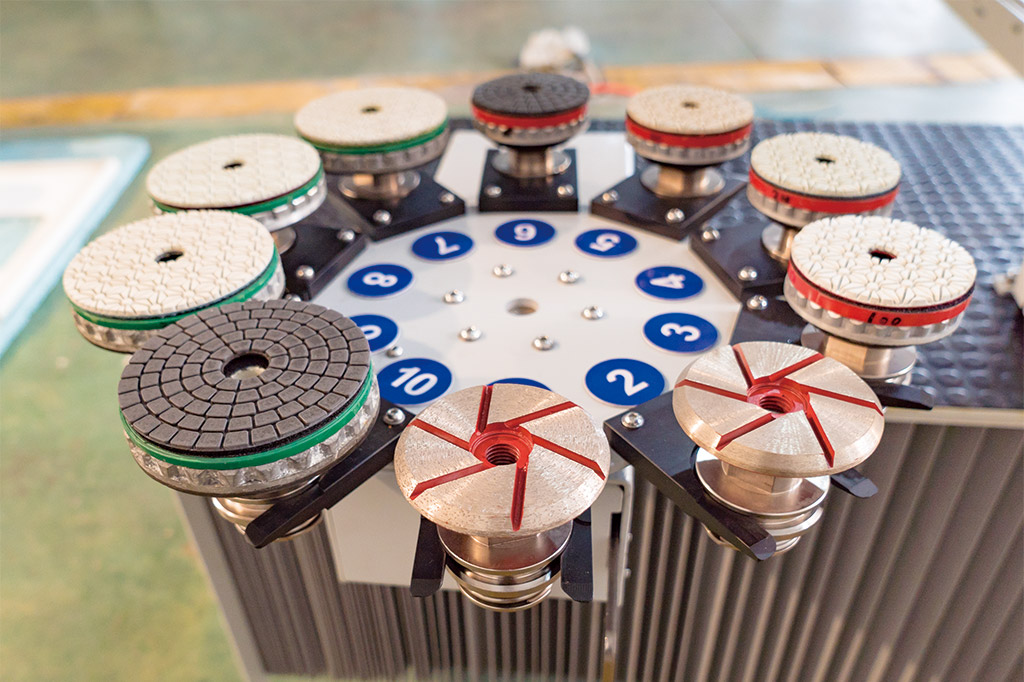

Tool carousel
Included in the machine a tool carousel with 10 tool holders. The carousel is designed for fast tool change and it can spin 360°.

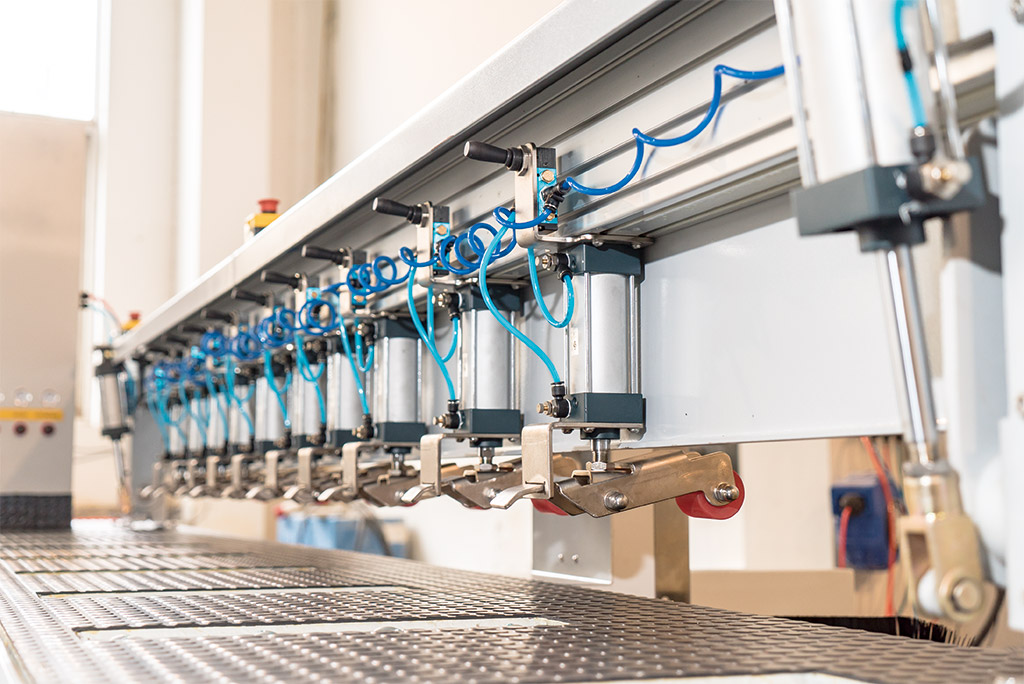

10 pneumatic fixtures
10 pneumatic fixtures to hold the stone in position are included in the machine.they can be moved manually according to the position of the stone, and they are locked and released easily trough a manual knob valve.

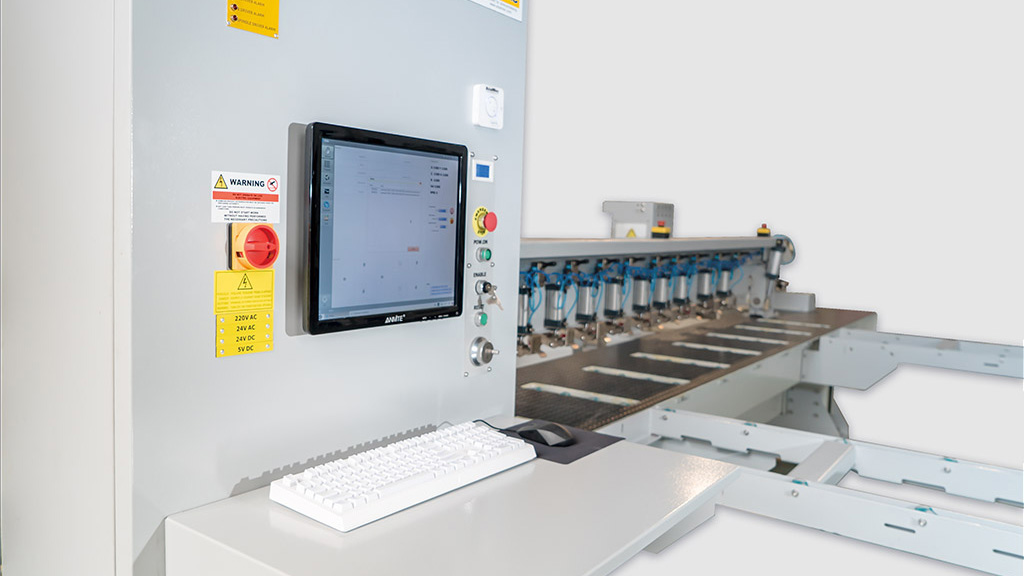

Software&Control panel
Free updates during the life of the machine. The software is made in AitalMAC and it allows the operator to use the machine and set up new programs. The machine is able to save programs and run it when it’s needed.There are 3 pressure regulators, speed control potentiometer, emergency and led error lights for fast troubleshooting.
Edge examples
Example of what kind of shapes the machine is able to reproduce
Technical date
| Min. Polish wheel diameter | 95 mm/3.74 in |
|---|---|
| Max. Workable length | 3500 mm/138 in |
| Max. Workable thickness | 70 mm/2.76 in |
| Tool change positions | 10 number |
| Motor speed | 0-3500 rpm |
| Max. speed | 0-75 m/min/0-3000 in/min |

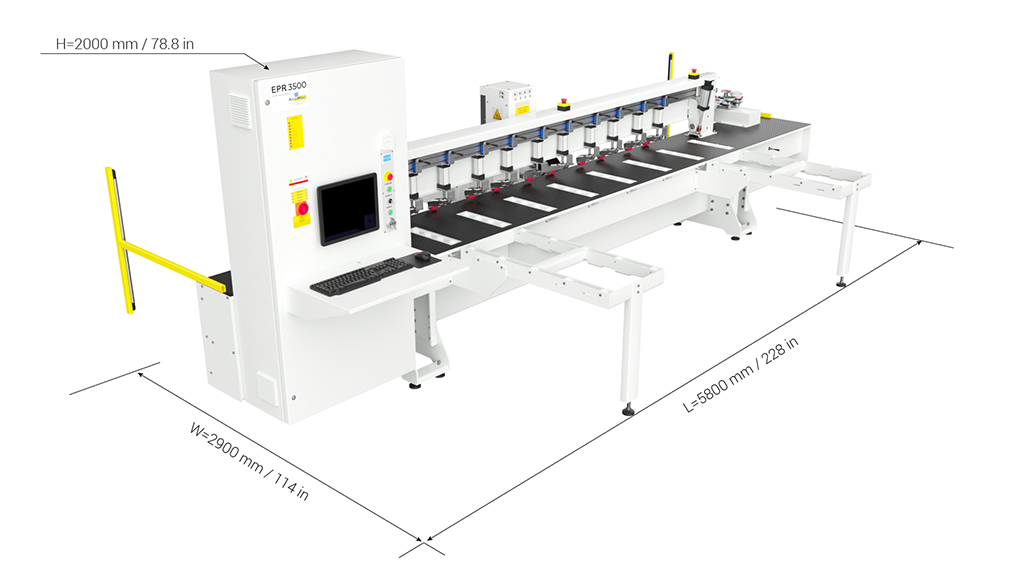

| Overall dimension | 5800×2900×2000 mm/228×114×78.8 in |
| Total weight | 2200 kg/4850 lbs |
| Water consumption | 10-20 l/min / 2.6-5.2 gal/min |
| Water pressure required | 1.5-2 bar |
| Compressed air required | 10 l/min / 2.6 gal/min |
| Air pressure required | 7 bar |
| Max. Install power | 10 kW |
