5-axis stone CNC Sawjet Orbit A5
This stone CNC Sawjet & bridge saw has everything a technologically advanced bridge saw & waterjet needs to have today: 5 interpolated axes, spindle with half inch fitting with through-spindle lubrication, tilting table up to 85° (Optional), vacuum manipulator system for parts movement during automatic cut process, on-board camera, blade presetting and stone thickness probe.The machine in details
- Waterjet 5 axis.
- This machine is a fully interpolated 5-axis bridge saw. The Y axis is moved by a gantry system. This guarantees a perfect square of the bridge. Automatic head rotation from 0° to 540° combined with automatic blade tilting from 0° to 90° makes it suitable for large production runs, at the same time containing costs.
- The absolute precision of the movements is guaranteed by a state-of-the-art transmission on linear ball guides, moved by brushless motors through high precision helical gears and racks.
- The CNC Sawjet & bridge saw machine comes with the “absolutely zero” technology, which allows the machine to work without doing the homing process.
- It has an extremely easy to use interface, realized to facilitate the interaction between the operator and the machine.
- The CNC Sawjet & bridge saw can quickly do easy cuts in manual; the machine can also import and work with DXF (AutoCAD) files and “G-code” (RS-274 machine tool programming language).
- The cable-drag chain and the electric cables used on the machine are purposely made for use at high speed (robot materials).
Waterjet 5 axis.

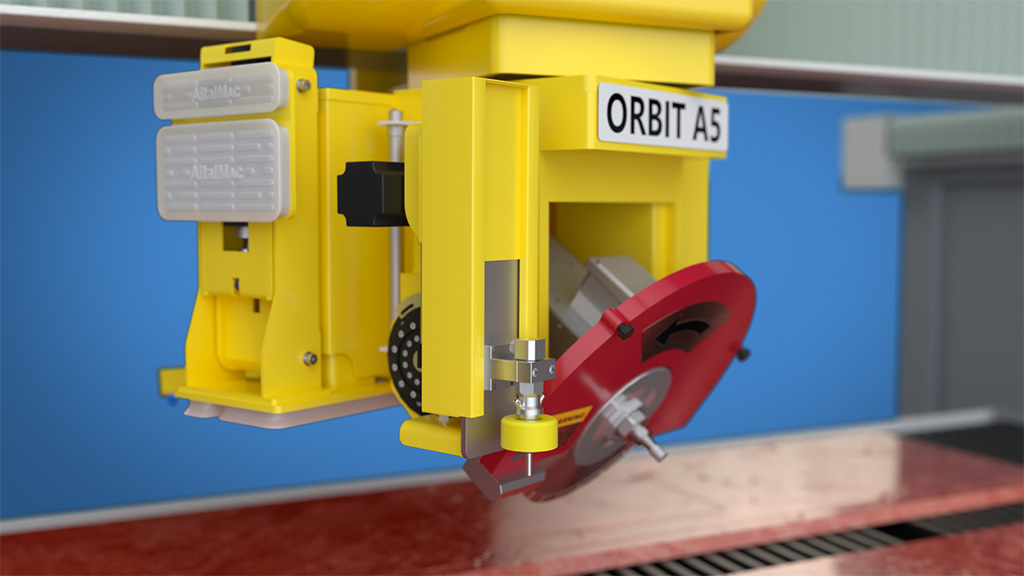

Automatic head rotation from 0° to 540° combined with automatic blade tilting from 0° to 90°.

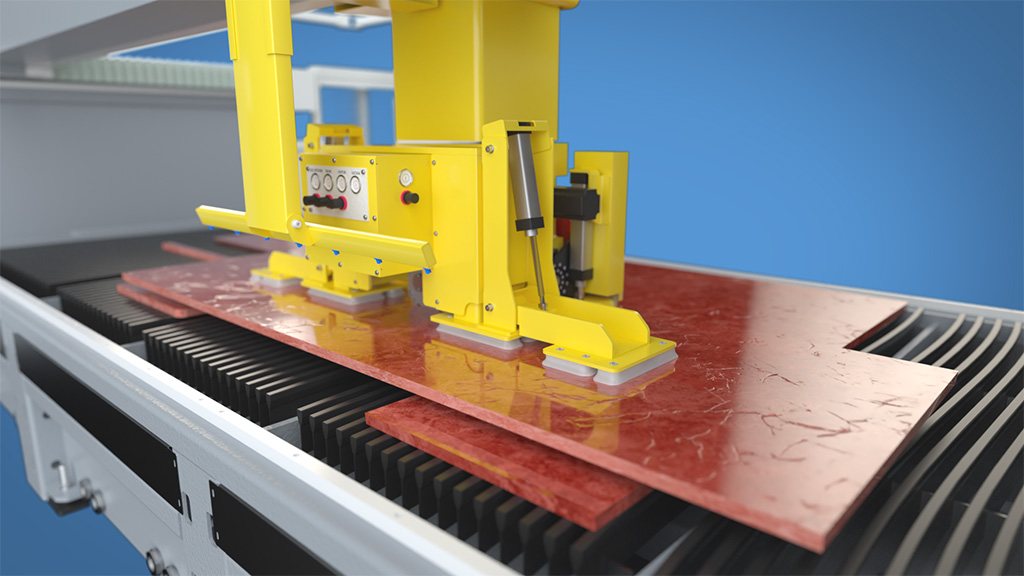

Vacuum manipulator system
The manipulator system has eight vacuum cups, enabling a lift capacity of 500 kg / 1100 lbs.

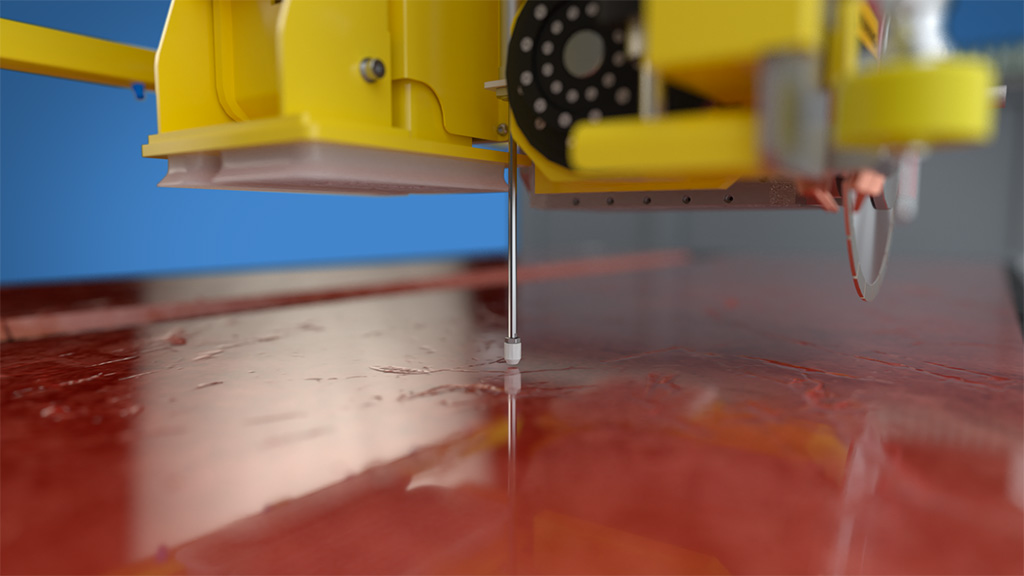

Stone & Blade probe
The stone probe and blade probe enable the machine to process the stone more accurately.

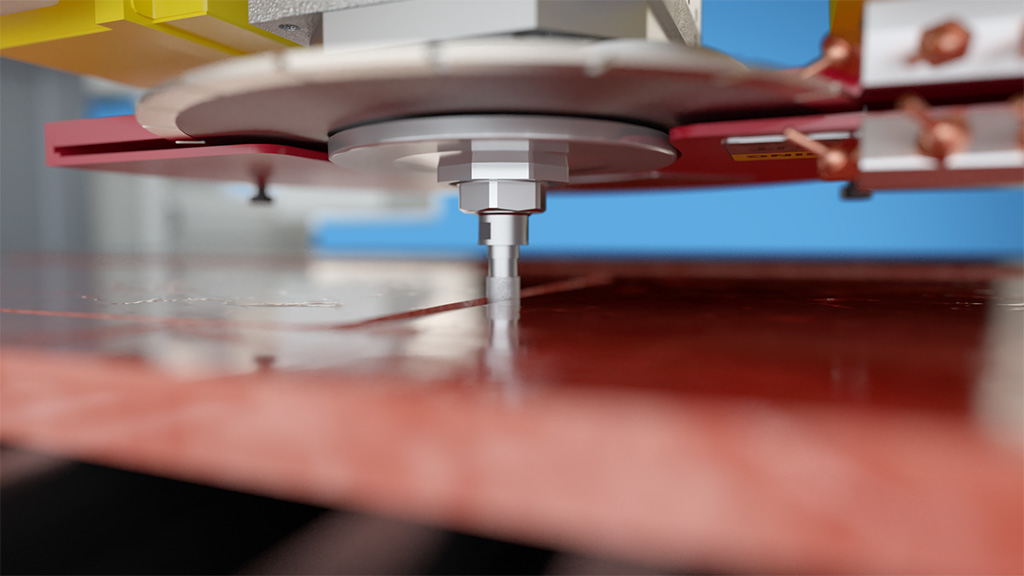

Spindle with half inch fitting
1/2” GAS fitting with internal water for fingerbits, engraving, polishing and drain boards.

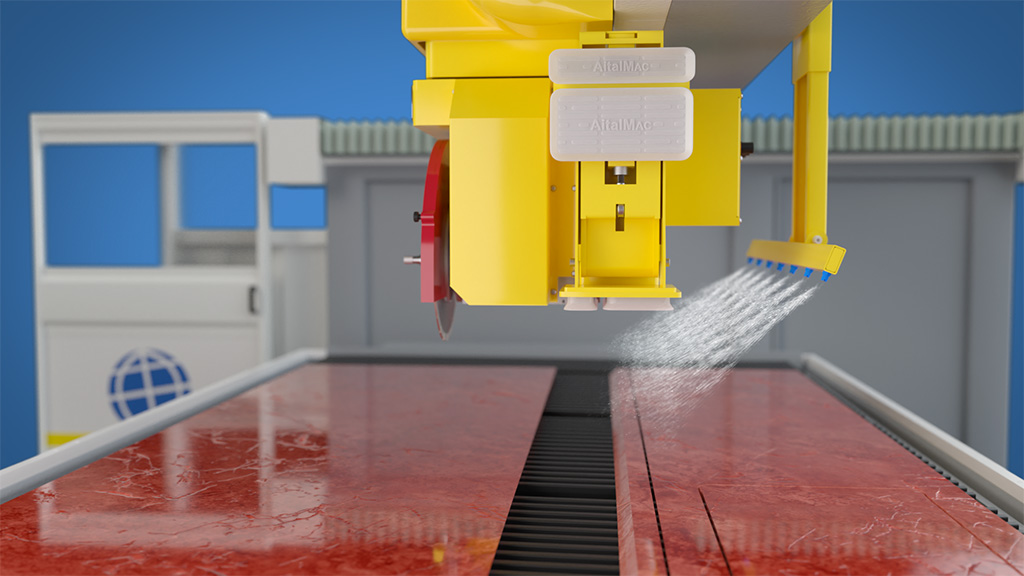

Washing apparatus
Included in the machine, a slab washing apparatus that is used to wash the stone before the vacuum manipulations.

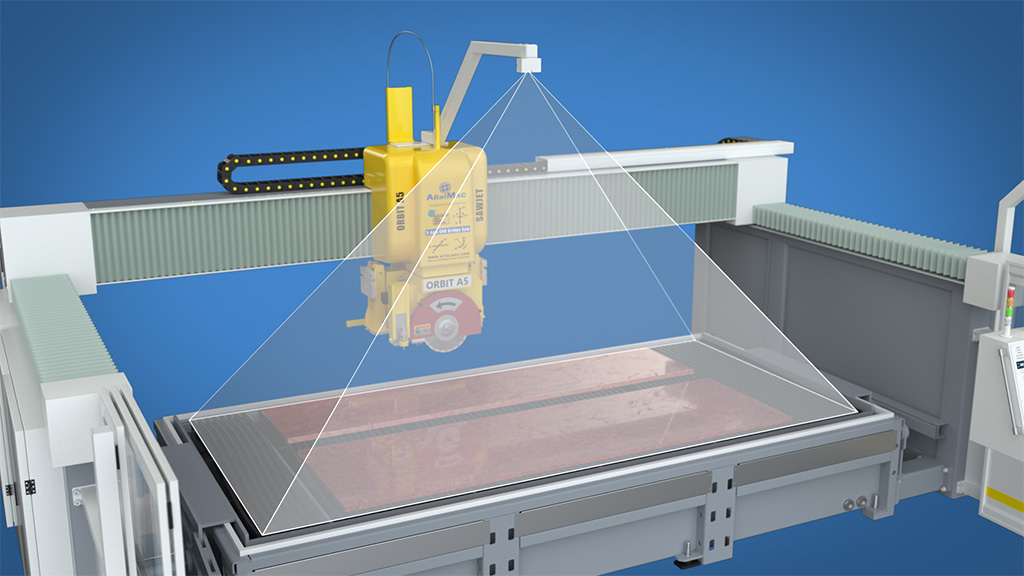

On-board camera
The machine is supplied with an on-board camera with a precision of +/- 5 mm. With the camera it is possible to snap a picture of the slab, and then import the picture in the program to place your parts avoiding defects.

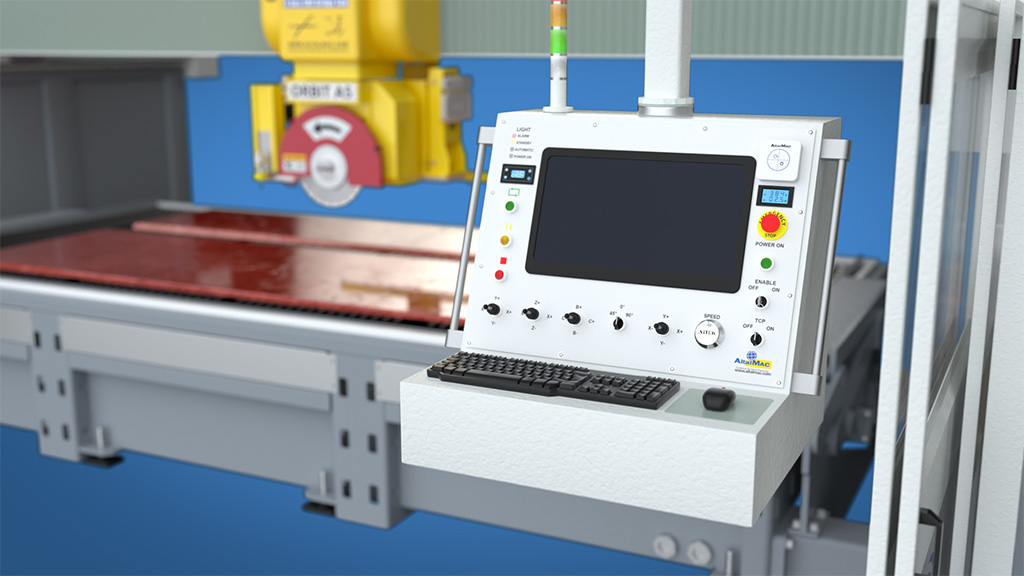

AITEK 9 AXIS CNC CONTROLLER:
- Automatic updates through internet
- Direct error report to AitalMAC
- Direct connection for remote assistance
- Tool manager
- Tool compensation management
- Backlash compensation
- Self-diagnosis system
- Access to driver for Aitalmac assistance
- Online monitoring system

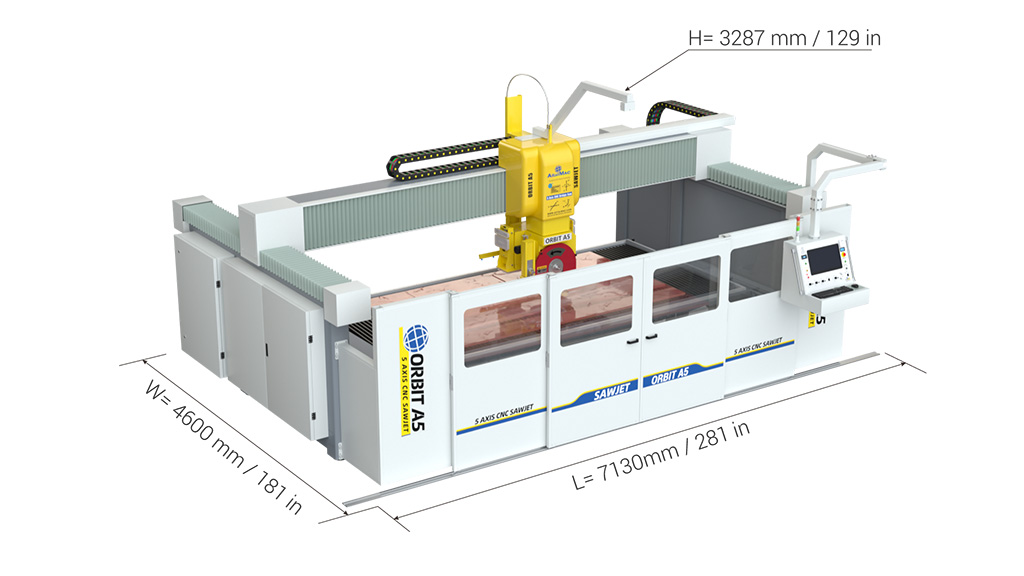

| Overall dimensions | 7130×4600×3287 mm/281×181×129 in |
|---|---|
| Total weight | 10000 kg/22046 lbs |
| Max. Install power | 20 kW +18 kW(WJ) |
| Sawjet table size | 4410×2100 mm/174×83 in |
| Linear axis travel (X-Y-Z) | 4420-2800 -380 mm/174 -110 -15 in |
| Rotary axis travel (B-C-V) | 90°-540°-60° |
| Max linear speed (X-Y-Z) | 50-50-8 m/min / 164-164-26 ft/min |
| Max rotation speed (B&C) | 3600°/min |
| blade diameter | 300-500 mm/12-20 in |
| Cutting disc hole diameter | 50 mm/1.96 in |
| Cutting disc flange diameter | 200 mm/7.87 in |
| Max cut thickness vertical | 150 mm/5.9 in |
| Electric spindle power | 15 kW(s1) |
| Maximum spindle rotation | 9000 rpm |
| Maximum pressure of Sawjet | 52000psi |
| Maximum angle of Sawjet | 60° |
| Vacuum cups | 8 number |
| Vacuum lift capacity | 500 kg/1100 lbs |
| Air pressure required | 7 bar |
| Sawjet water pressure required | 2 bar |
| Water consumption for blade cooling | 25-35 l/min or 6.5-9.2 gal/min |
| Water consumption for finger bit cooling | 5-10 l/min or 1.3-2.6 gal/min |
| Water consumption for waterjet | 5 l/min or 1.3 gal/min |
| Water consumption for slab washing | 15-24 l/min or 4-6.5 gal/min |
