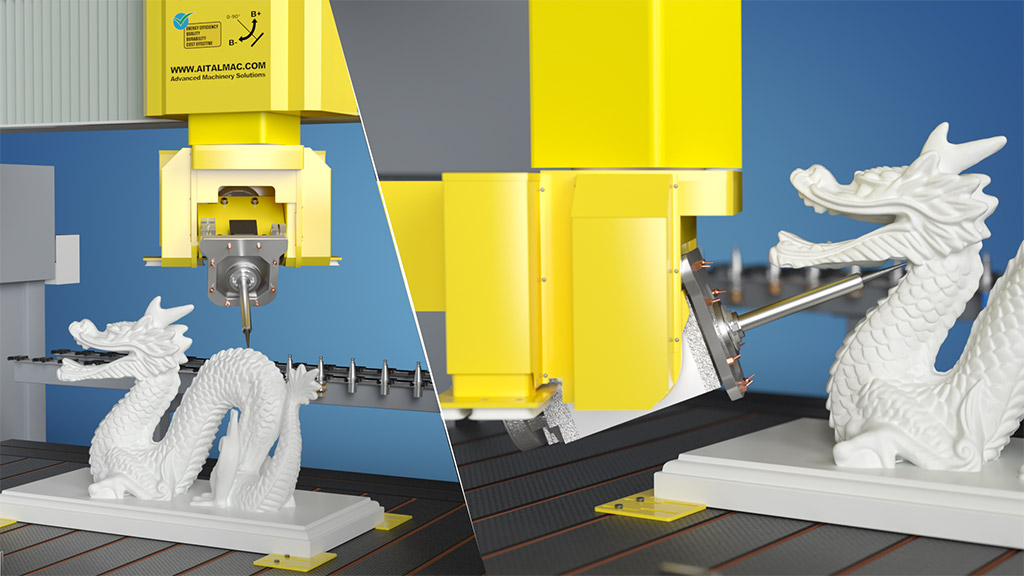

Stone carving

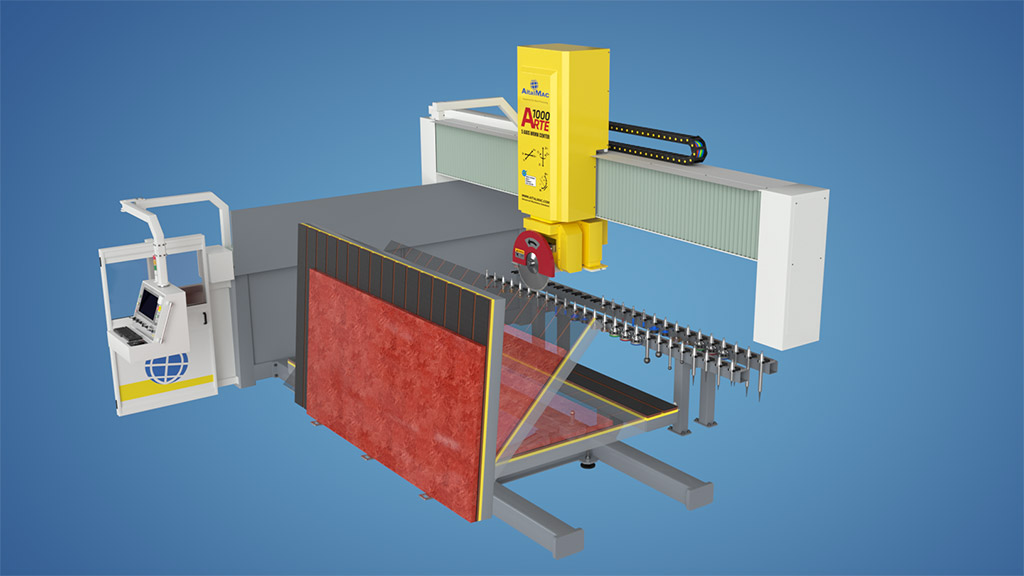

CNC Bridge Saw ARTE1000 accurate and fast stone carving.

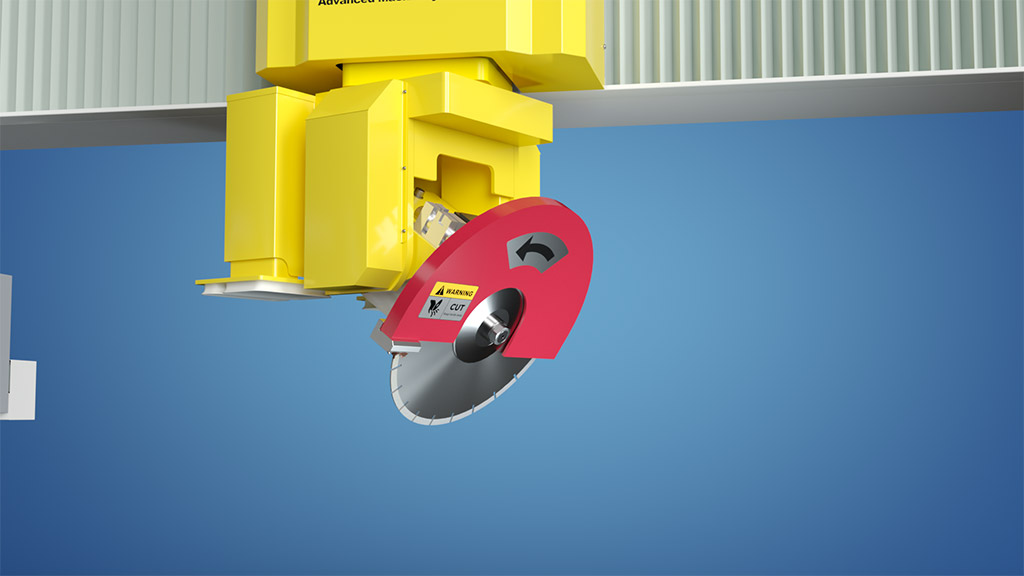

5 axis cutting head
Can miter and interpolate in any direction .

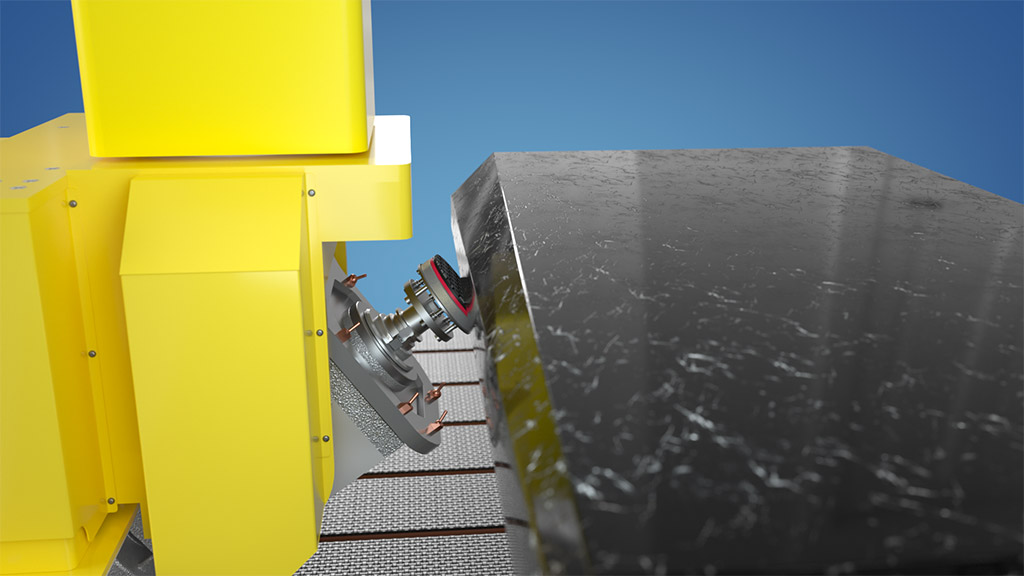

Stone edge polish
CNC Bridge Saw ARTE1000 can polishing of flat and rounded edges of stone.
Tilting table up to 85°
Table tilts up to 85°, enabling the easy loading of your slabs.

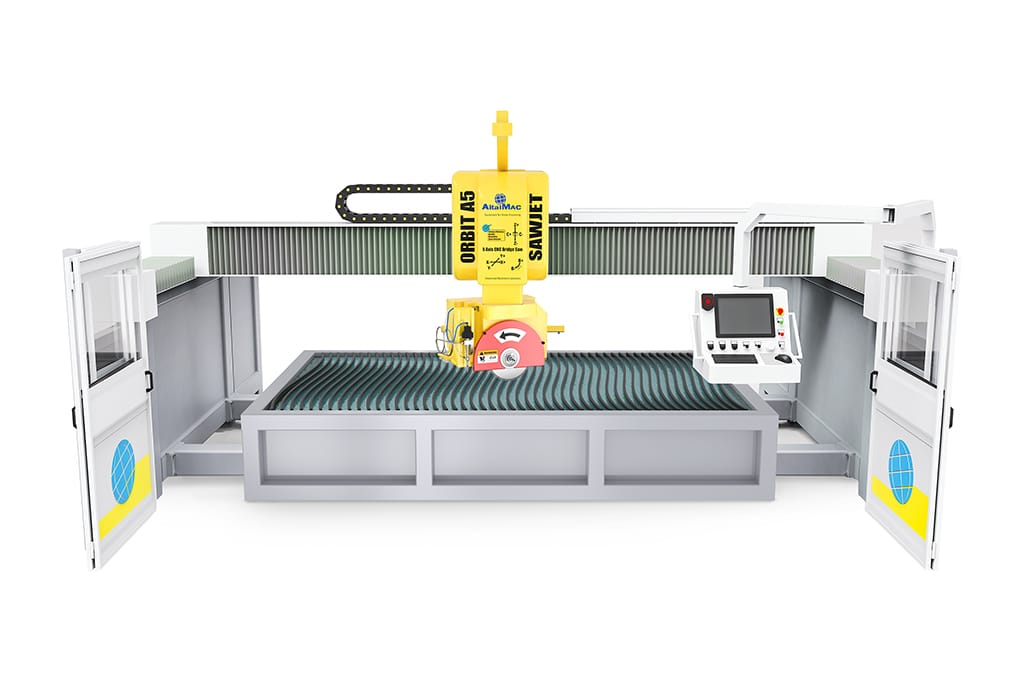

5 axis stone CNC Sawjet Orbit A5
This stone CNC Sawjet & bridge saw has everything a technologically advanced bridge saw & waterjet needs to have today: 5 interpolated axis, spindle with half inch fitting with trough-spindle lubrication, tilting table up to 85°, vacuum manipulator system for parts movement during automatic cut process, on-board camera, blade presetting and stone thickness probe.

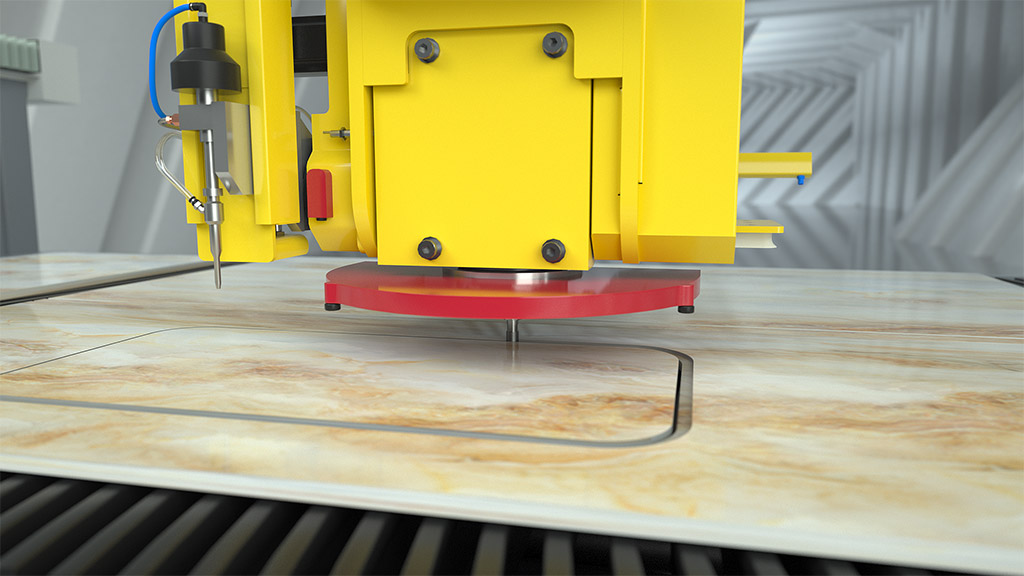

Waterjet 5 axis.
Automatic head rotation from 0° to 360° combined with automatic blade tilting from 0° to 90° .

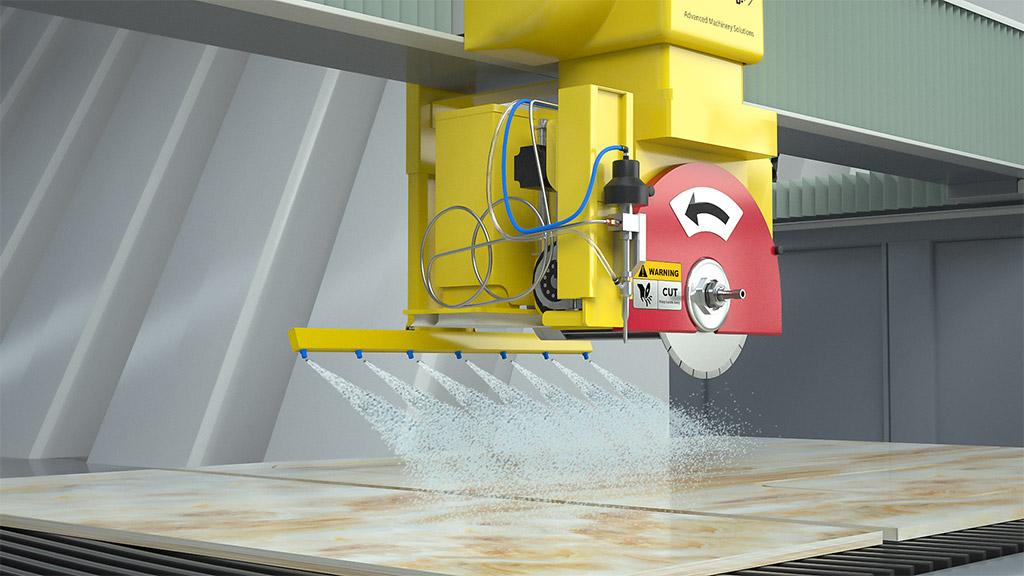

washing apparatus
Included in the machine a slab washing apparatus that isusedtowhash the stone before the vacuum manipulations.
Vacuum manipulator system
The manipulator system has four vacuum cups, enabling a lift capacity of 500kg / 1100lbs
Spindle with half inch fitting
1/2” GAS fitting with internal water for fingerbits, engraving, polishing and drain boards.

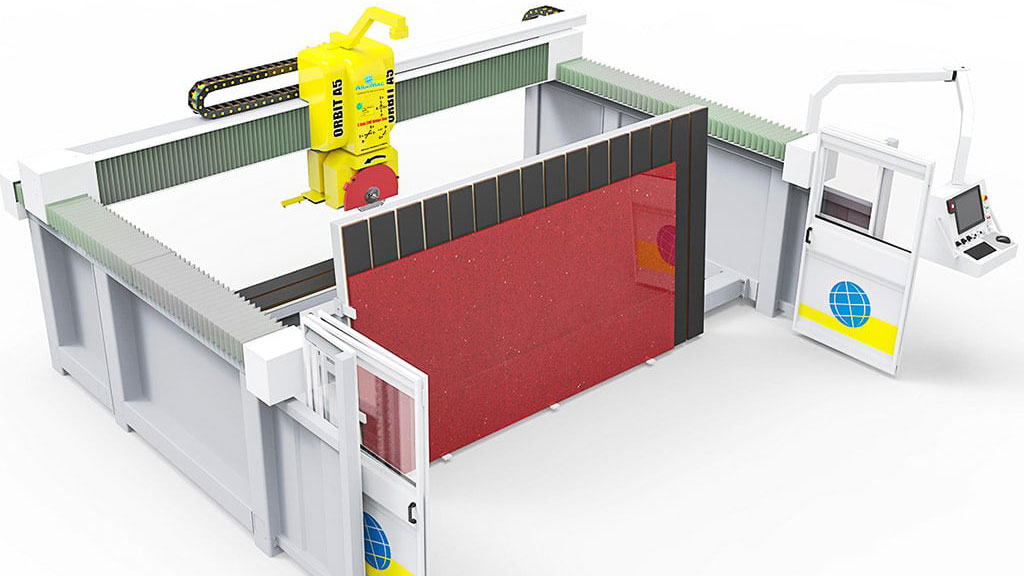

5 axis CNC Bridge Saw Orbit A5
This stone CNC bridge saw Orbit A5 is a quality, qurability, cost effective, energy efficiency, look forward, green manchine, This bridge saw can process marble, granite. synthetic stones and more stones, CNC bridge saw is a fully interpolated 5 axis bridge saw. The Y axis is moved by a gantry system. This guarantees a perfect square of the bridge. Automatic head rotation from 0° to 400° combined with automatic blade tilting from 0° to 90° makes it suitable for large production runs, at the same time containing costs. .
Tilting table up to 85°
Table tilts up to 85°, enabling the easy loading of your slabs.

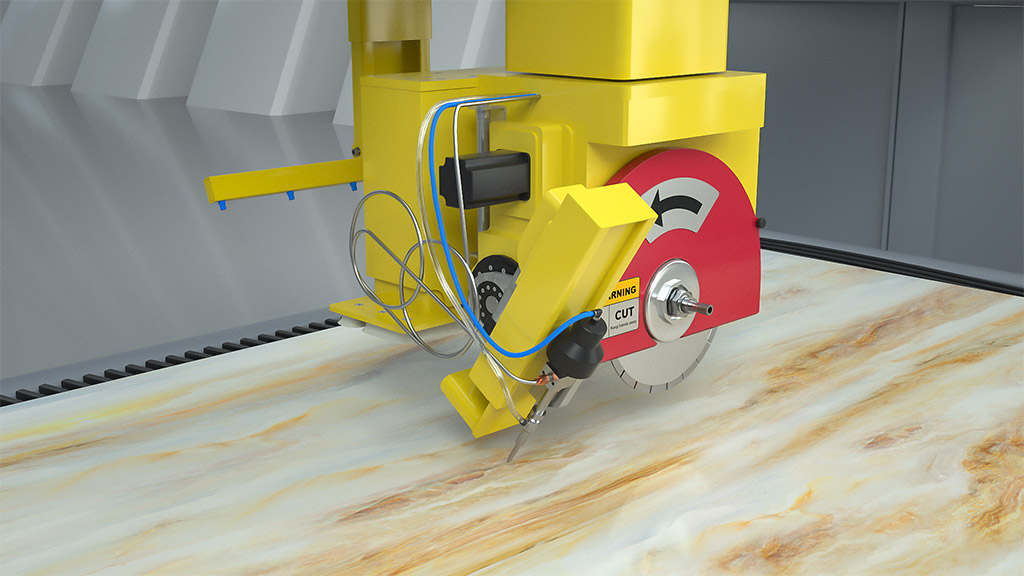

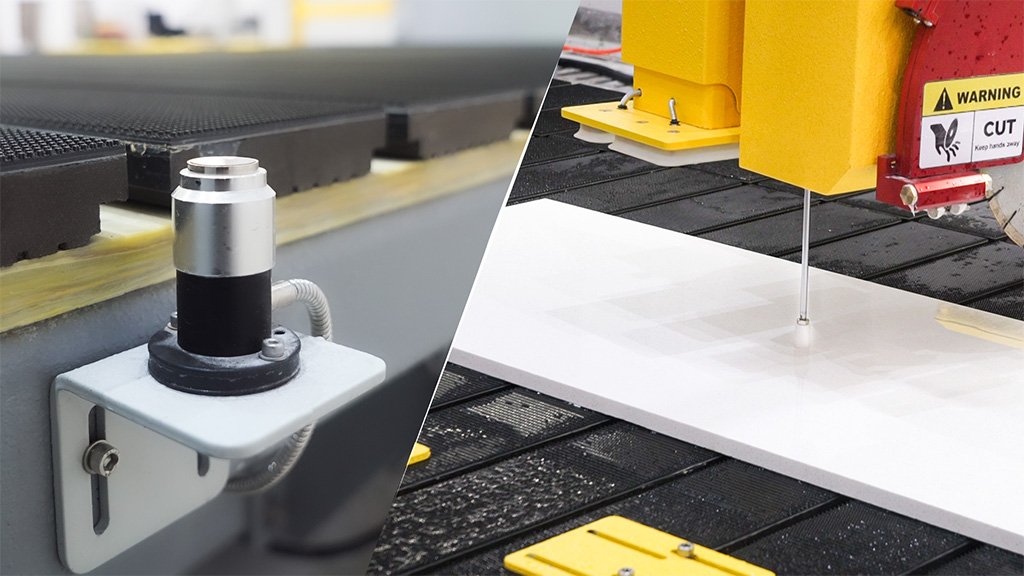

Stone & Blade probe
The stone probe and blade probe enable the machine to process the stone more accurately.

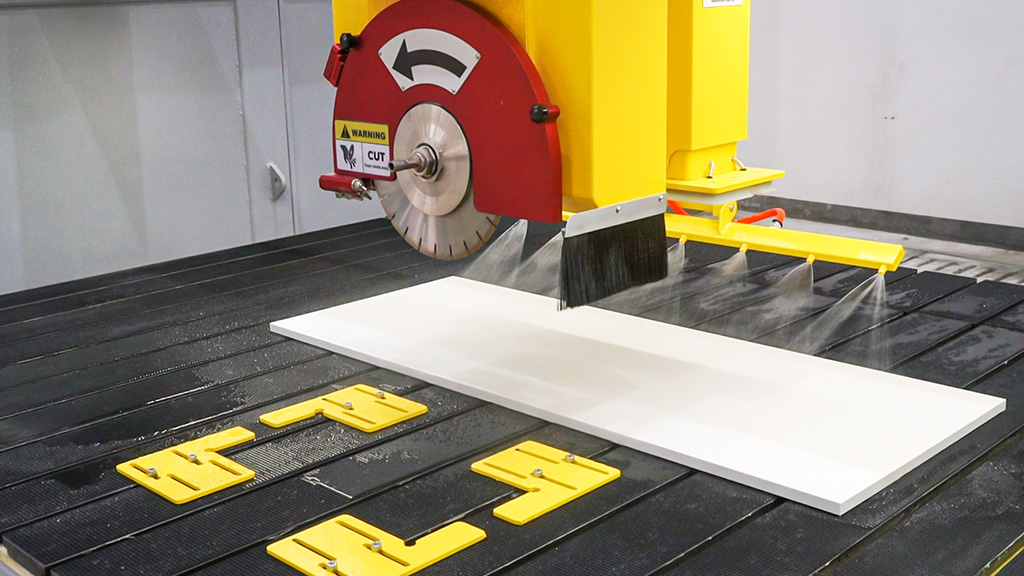

washing apparatus
Included in the machine a slab washing apparatus that isusedtowhash the stone before the vacuum manipulations

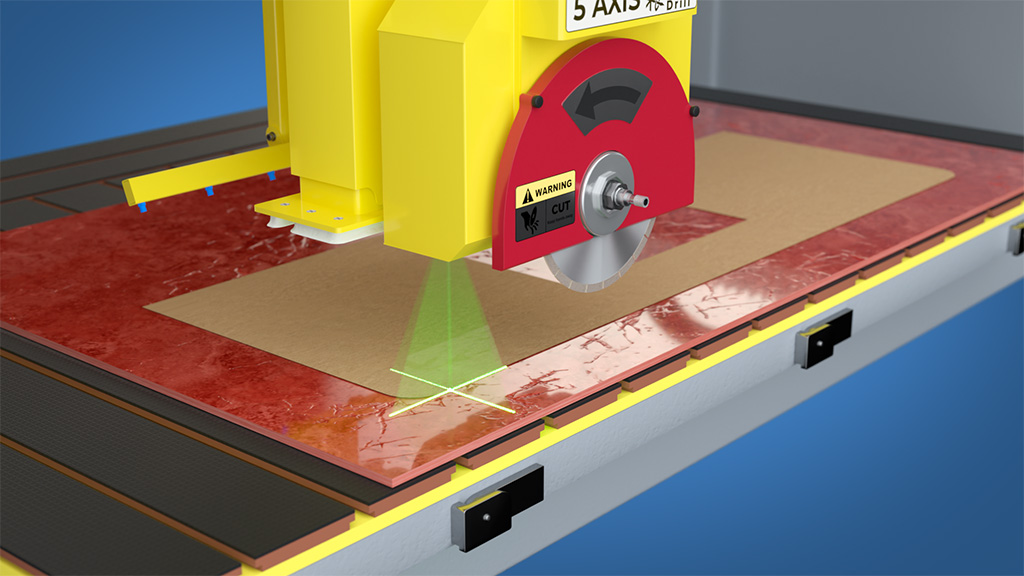

DXF Digital templater
This machine is equipped with a system to digitize templates. Using a laser pointer, it’s possible to acquire points and save them in a DXF file.

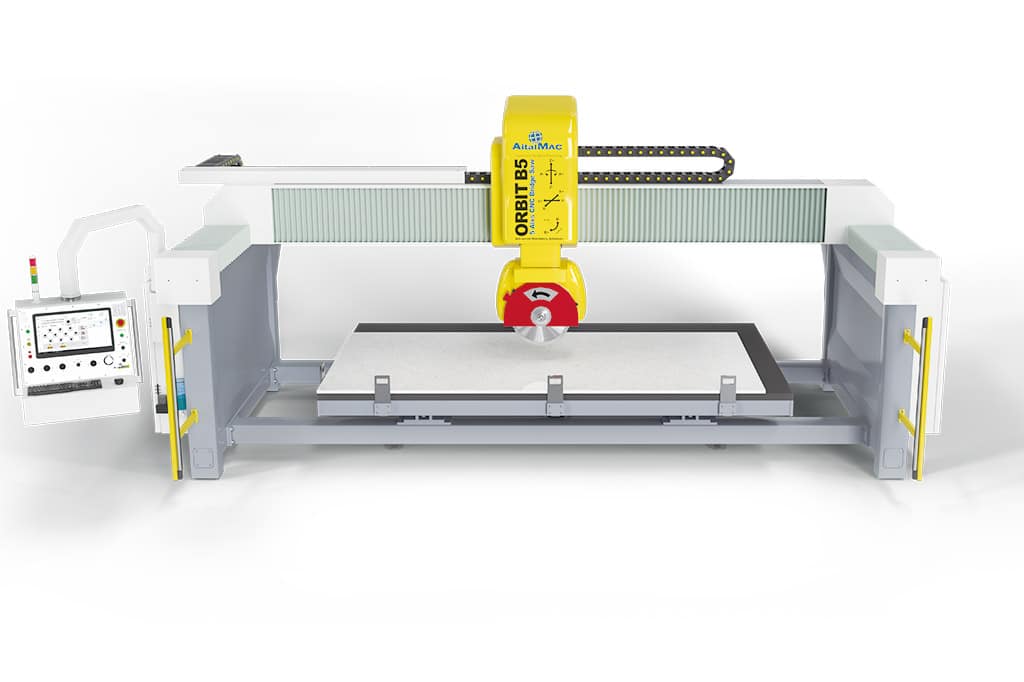

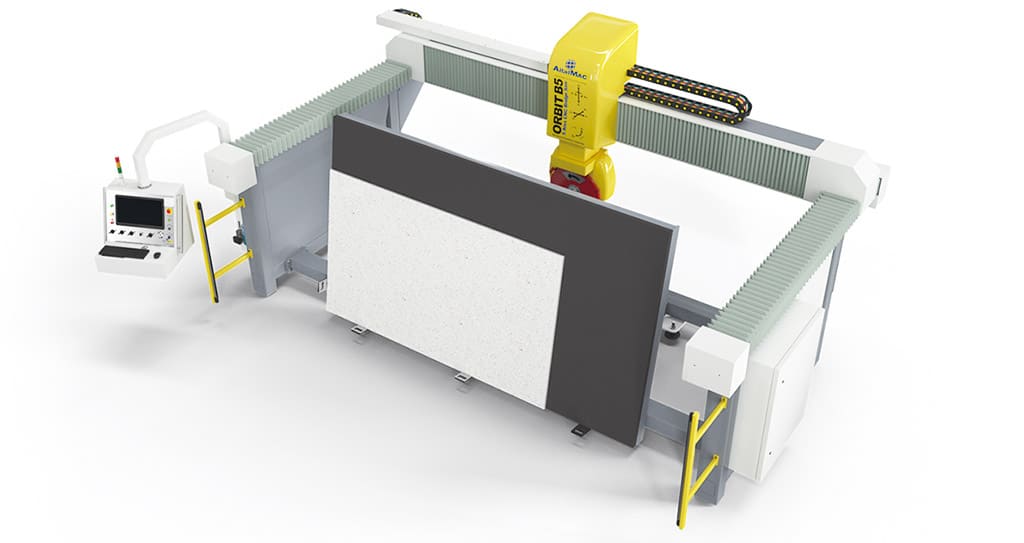

5 axis CNC Bridge Saw Orbit B5
This stone CNC Bridge Saw Orbit B5, It is a medium-sized stone cutting machine. It can process stone quickly, efficiently and economically, This bridge saw has a lot of advanced technology: spindle with half inch fitting with trough-spindle lubrication, on-board camera, blade presetting and stone thickness probe.

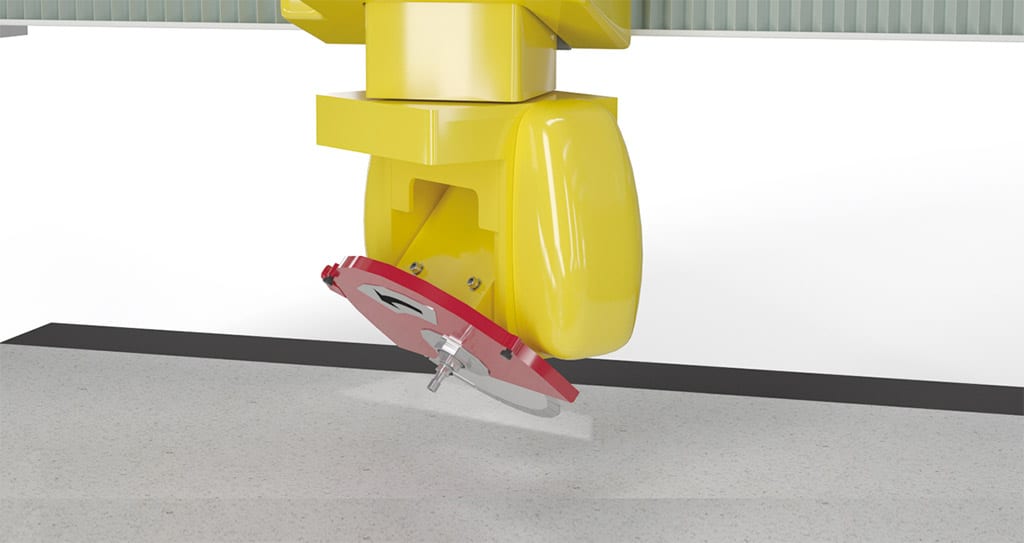

5 axis cutting head
Bridge saw Orbit can miter and interpolate in any direction, fast and efficient processing of stone.
Tilting table up to 85°
Table tilts up to 85°, enabling the easy loading of your slabs.

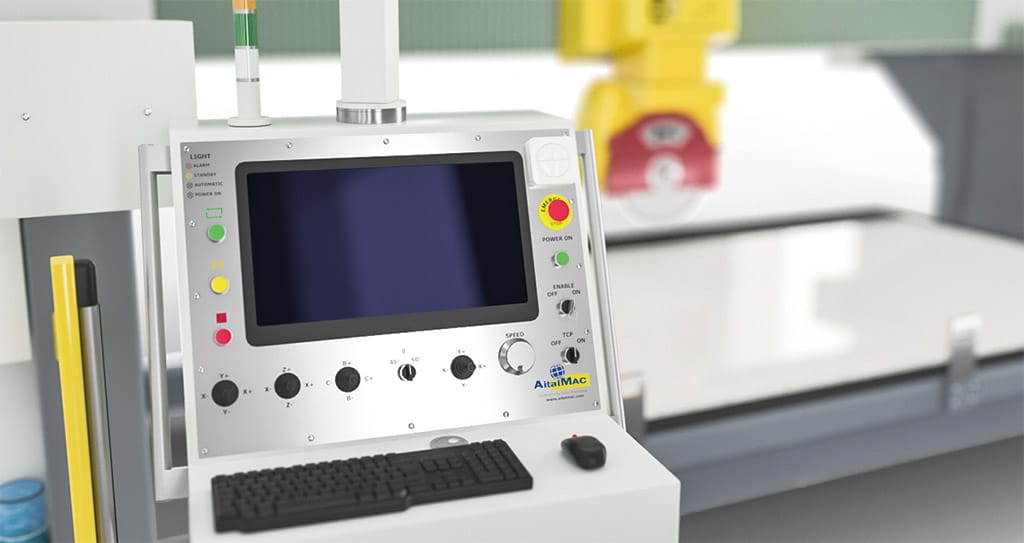

CNC Controller Software
Easy to use interface. Imports and works with DXF files and standard G-Code, but can also do simple cuts in manual mode.

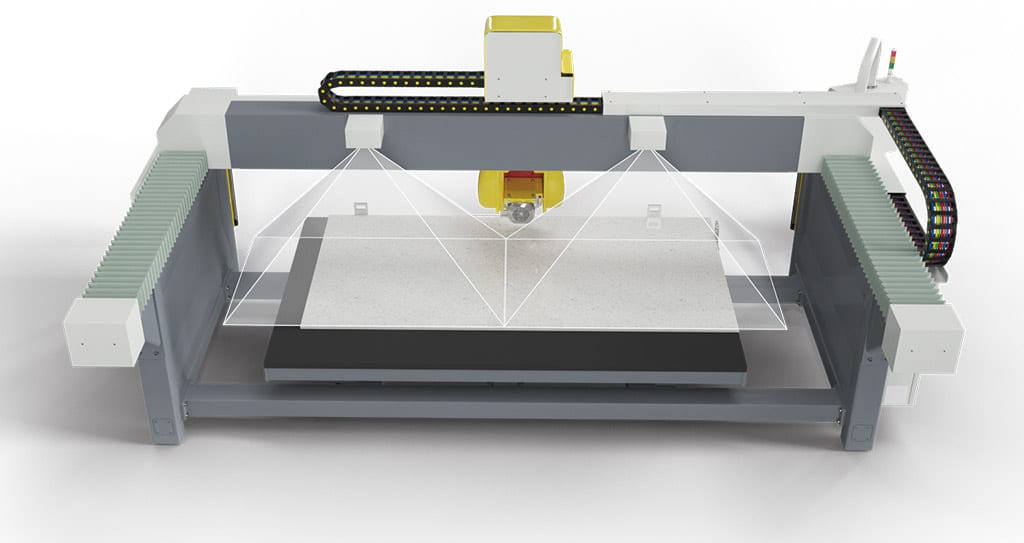

On-board camera
With the camera is possible to snap a picture of the slab, and then import the picture in the program to place your parts avoiding defects.
5 axis CNC Bridge Saw BK5+V
The first “green” machine in the stone market, “green” standing for: Energy efficiency, Quality, Durability, Costs.CNC Bridge Saw BK5+V do the same job and more of a traditional bridge saw with only 25% of the energy.
The first evident advantage is the ratio between working area and overall machine dimensions. This Bridge Saw with a working area of 4000mm x 2420mm occupies only 15.5 square meters, making it possible to fit two machines in the space of a traditional bridge saw.
The first evident advantage is the ratio between working area and overall machine dimensions. This Bridge Saw with a working area of 4000mm x 2420mm occupies only 15.5 square meters, making it possible to fit two machines in the space of a traditional bridge saw.

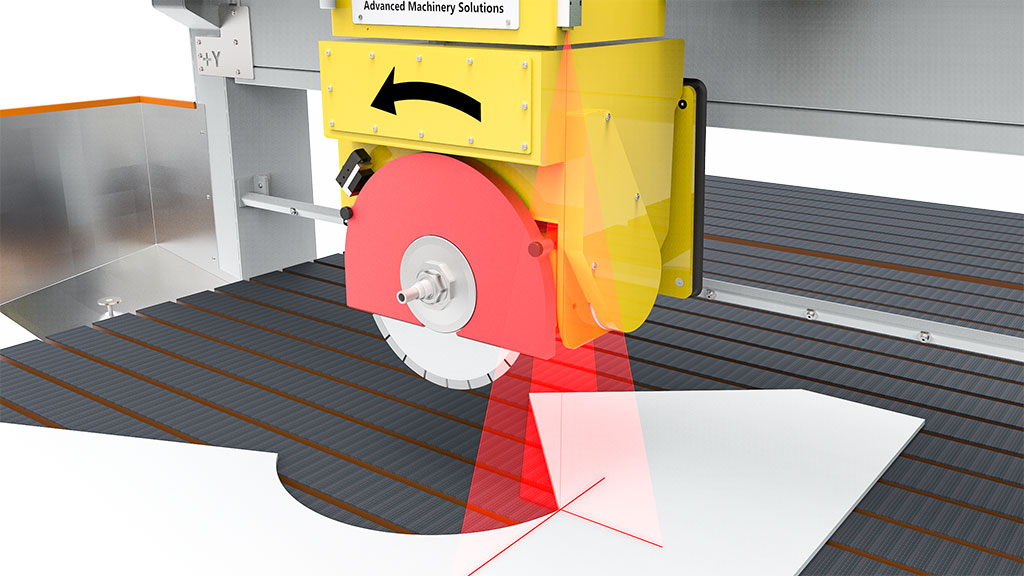

DXF Laser templater
The machine is equipped with a system to digitize templates, it’s possible acquire points and save them in a DXF file.

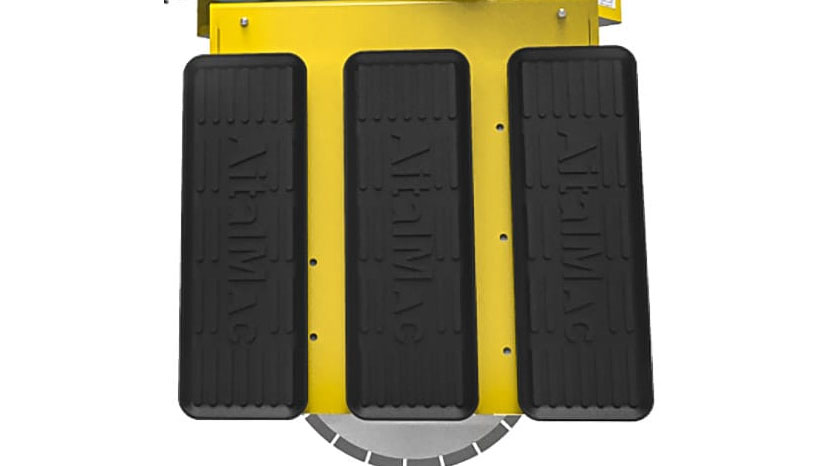

Vacuum lifter
Vacuum lifter The group is composed of 3 vacuums 130 x 400 mm, controlled independently. Max capacity 200 kg each.

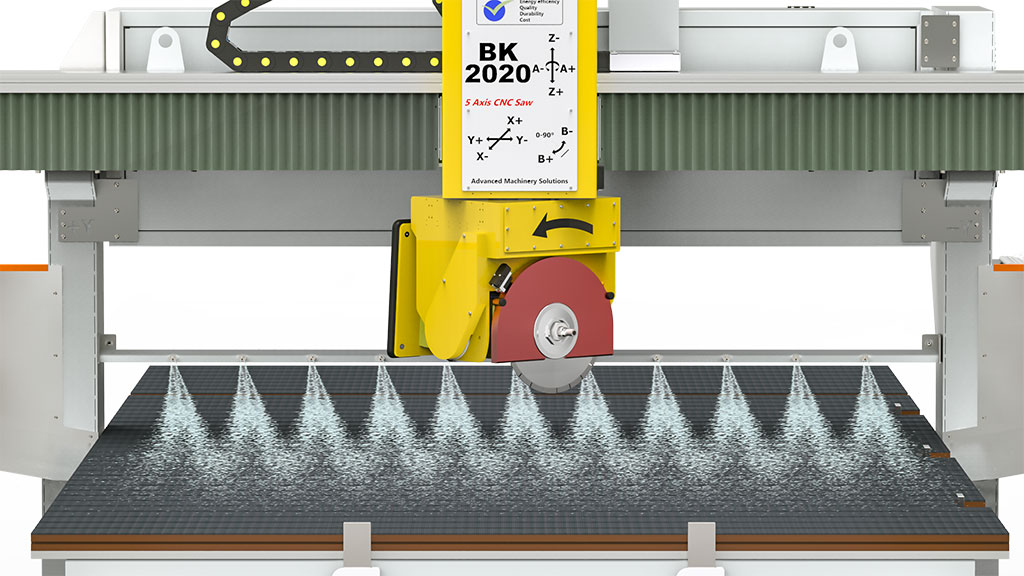

washing apparatus
Included in the machine a slab washing apparatus that isusedtowhash the stone before the vacuum manipulations

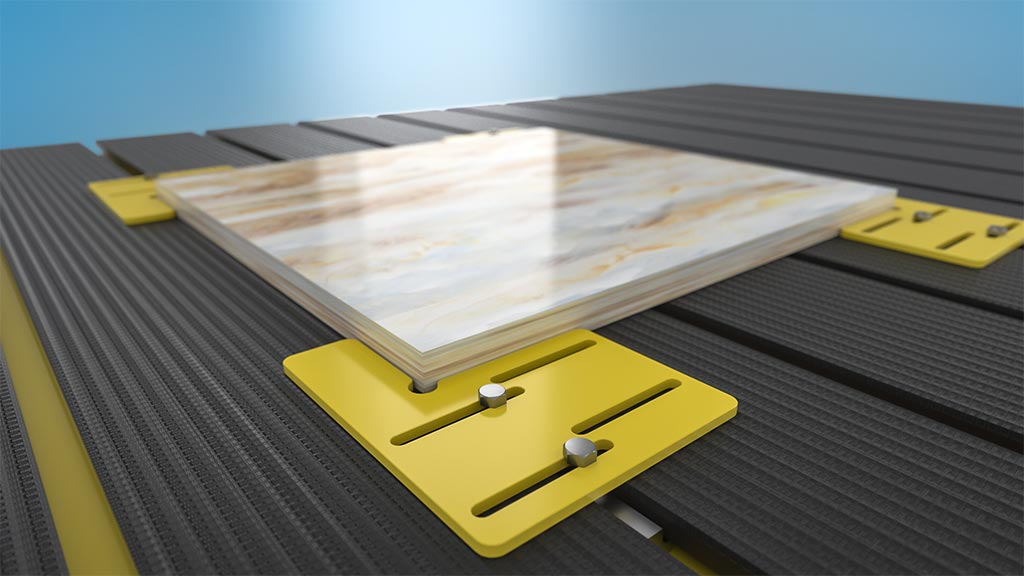

Fixture system
It’s possible to block parts using convenient fixtures (supplied with machine) that will hook on the table slots milled on the central table layer.
